We build a framework to systematize our research on Sparse Auto Encoders (SAEs). Our infrastructure encompasses SAE training, evaluation and visualization on any Transformer model. We believe this framework will be beneficial for the mech interp community, especially for Chinese community to easily get into this field. We also illustrate some impressive features and phenomenologies GPT-2 Small exhibits.

There are way more problems remaining mysterious and we hope to share our 1-year agenda to inspire more researchers to join us in this journey.

Our Github Repo

Browse SAE Features

Before diving in, we aim to offer some (maybe opinionated or even unfair) insight into the rationale and our goals behind our research direction.

We do not claim to take up any pioneering role in this field. And all of the ideas we share in this section are basically discussed by Anthropic , also by a great number of Mech Interp researchers on LessWrong and the Mech Interp Discord. There are way more names and groups we do not mention here but they all contribute non-trivially to this field.

We were often asked for one question: how will interpretability help with AI research and improve model performance or fit into AI safety? We humbly think interpretability itself is the answer. Let alone previous excellent AI safety-related articles or views by Neel Nanda and Chris Olah, imagine the future with more people working with AI assistants like the GPT family or the Claude family and more companies making billions of dollars with AI models. Any trials to opening the black box, even if only to a small extent, should be worthwhile. To be more precise, the natural curiosity to demystifying artificial intelligence and appreciation of the beauty of neural networks is enough to answer the question, though this answer may be somehow irrelevant.

As for performance improvement, an example is the inspiration induction heads give to Hungry Hungry Hippo. We may also expect mech interp to offer insights of the mechanism when Transformer language models hallucinates. We name this for Transformer Pathology and we are still in very early stage of this direction.

Despite the microscopic nature of mech interp research, it may reveal the inner structure of knowledge or belief of language models and help researchers predict or check the consistency with their macroscopic behavior. There is silver lining, e.g. studies on induction heads, that microscopic behaviors can be connected with macroscopic ones. If this mode of inspection scales up to industrial-size models, based on which we may be able to do more on red-teaming, regulation, and data-centric bug fixing (i.e. finding detrimental data sample or data source).

In this post, we will share our recent effort on a prevalent and (at least we believe is) promising tool in Mech Interp: sparse dictionary learning in Transformer language models. In the section of What Are Features, we demonstrate the rationale behind our investiment in this approach. In SAE Training and Stats, we want to share our implementation that we find is currently the most effective among approaches we have tried. We also developed an Interpretability Interface to quickly get some statistics we are interested about of a given SAE feature. The section of Features We Have Found exhibits a number of intriguing (or maybe exaggeratedly, stunning) SAE features inside of GPT-2 Small. The Agenda section introduces several directions we think are worth pursuing.

Our code base is open-sourced and available at OpenMOSS/gpt2-dictionary, featuring a complete pipeline for SAE training, evaluation and visualization. More importantly, one thing we have been longing for is to promote mech interp research in Chinese community.If any group or individual finds our work of interest, please feel free to contact us via email zfhe19@fudan.edu.cn

What Are Features: Decomposability, Linearity and Sparsity

The term of feature can cover a wide range of concepts in machine learning. For instance in tabular data, features are the columns of the dataset. In the line of mech interp research, we often think of features of the input or the model's intermidiate representation as Directions in the Activation Space, i.e. the linear representation hypothesis, as discussed in Anthropic's Toy Models of Superposition . It can be controversial to try to give any inductive bias to the model representation. So we cautiously give 3 properties that we expect features to have in a Transformer language model:

Sparse Dictionary Learning utilizes a sparse autoencoder to learn a decomposition of an activation space into a set of linear and sparse features, with an objective function to reconstruct any given input sampled from the activation distribution. SAEs in their nature capture the aforementioned properties and in theory will recover the original set of features underlying in the activation spaceThough in practice, we do not know in oracle what the true feature set is. Even if we predefine them, we often fail to really recover them and may instead find a compositional basis. See this post for an example..

SAE based approaches have many advantages over other previous mechanistic methods We do not claim overwhelming edge but these may be reasons to be optimistic and investigate more on SAEs. :

  1. More Monosemanticity than Neuron-Based Methods: To break down the model's internal representation into a set of small units for independent analysis, a natural choice is to directly use neurons as the basic analysis unit since they're also the basic for model computation. However, neurons are often found to be "polysemantic", i.e. they're multi-functional and can be activated by several non-related features, thus not interpretable as single concepts. In contrast, dictionary features are empirically more interpretable and monosemantic.
  2. More Scalability than Probing-Based Methods: SAEs are unsupervised approach that can be trained to decompose the language model activations in any position inside of the model generated from arbitrary corpora. Compared to patching and linear probing, which either require selected tasks and datasets, or predefined pattern to recognize, SAEs have the potential to capture more features, especially those we fail to predict or expect in advance.

Despite these inviting properties, training good SAEs is not such trivial tasks. The main resistance comes from the trade-off between sparsity and reconstruction quality. Optimizing either can lead to the other being deteriorated. Thus, a balance should be struck between the two objectives. Issues of dead features and feature suppression are two of already known obstacles to pushing the pareto front of SAEs.

Sparse Auto Encoders for the GPT-2 Attention & MLP Output

Why Attention & MLP Output?

Previous mechanistic interpretability research (SAE-based or logit lens approach) on GPT-2 Small basically focused on the residual stream, which is the most natural choice: It's a sum of all the output of previous layers, and can be viewed as the memory management center of the model. However, while the residual stream intuitively gives information on a prefix sum of the model's internal process, it doesn't provide a clear picture of how every individual layer contributes. In contrast, the attention and MLP outputs show directly how each layer processes the input. See our previous article for a more detailed discussion on this topic.

Architecture and Training Overview

We trained an SAE on each of the outputs of the 12 attention layers and 12 MLP layers of GPT-2 Small. We follow most of the training settings from Anthropic's approach (along with their advice in February Update) and Joseph Bloom's approach, but with some modifications.

The details of pruning and finetuning will be discussed later in this post.

How good are these Sparse Auto Encoders?

We have found that the attention and MLP outputs seem harder to train SAEs on. We have tried a variety of different hyperparameters and training strategies, but the results are still not so satisfying as that of the residual stream, which is mainly reflected in a lower variance explained and a higher L0 loss.

It worths to note that the we didn't observe a significant increase in cross-entropy loss even with a zero ablated layer output. It seems that GPT-2 Small is robust to the ablation of a single layer output, and shows strong self-repairing ability.

Layer Var. Explained L0 Loss Reconstruction CE Score Reconstruction CE Loss
L0M 94.45% 14.36 99.69% 3.2278
L1M 78.37% 39.24 83.86% 3.2202
L2M 81.61% 54.82 77.12% 3.2246
L3M 79.21% 102.62 88.11% 3.2208
L4M 78.58% 156.69 88.26% 3.2206
L5M 71.57% 113.64 83.43% 3.2264
L6M 77.99% 170.18 89.68% 3.2227
L7M 71.99% 119.65 82.17% 3.2283
L8M 76.72% 141.72 87.13% 3.2250
L9M 77.54% 129.02 86.50% 3.2253
L10M 76.90% 116.80 79.01% 3.2384
L11M 75.69% 66.10 71.74% 3.2637
Original 3.2130
Summary Statistics for SAEs trained on GPT-2 Small MLP Output. L0 Loss is average number of non-zero feature activations per token. Reconstruction CE Score is the proportion of cross-entropy loss recovered by SAE from the zero ablated layer output, which is computed as \frac{\mathcal{L}_\text{SAE Reconstructed} - \mathcal{L}_\text{Zero Ablated}}{\mathcal{L}_\text{Original} - \mathcal{L}_\text{Zero Ablated}} \times 100\% .
Layer Var. Explained L0 Loss Reconstruction CE Score Reconstruction CE Loss
L0A 92.25% 29.66 99.24% 3.2327
L1A 82.48% 65.57 97.19% 3.2138
L2A 83.39% 69.85 94.29% 3.2150
L3A 69.23% 53.59 87.00% 3.2173
L4A 74.91% 87.35 89.99% 3.2171
L5A 82.12% 127.18 97.81% 3.2145
L6A 76.63% 100.89 94.31% 3.2158
L7A 78.51% 103.30 91.32% 3.2182
L8A 79.94% 122.46 88.67% 3.2172
L9A 81.62% 107.81 89.55% 3.2187
L10A 83.75% 100.44 87.70% 3.2201
L11A 84.81% 22.69 85.49% 3.2418
Original 3.2130
Summary Statistics for SAEs trained on GPT-2 Small Attention Output.

Feature Pruning

What do we expect a feature to be? Intuitively, a feature reflects on the existence or extent of a certain human-understandable aspect in the input, which is, a "semi-local" / compositional code to represent the input. Each of the features should be activated by a subset of the input corpus, without being too dense (i.e. activated by nearly every token) or too sparse (i.e. can hardly be activated).

However, the actual dictionary features trained end-to-end are not always so ideal. We observed that some dictionary features more like "local" codes. That is, they are activated by very specific tokens. These features are trivial and not helpful for understanding an activation pattern from a compositional perspective. Feature pruning aims to remove these trivial features and keep the more meaningful ones.

In practice, a dictionary feature will be pruned if it meets one of the following criteria:

Features meet these 3 criteria are often overlapping. We list the features that meet these criteria in the following table:

Layer Max act < 1 Norm < 0.99 Sparsity < 1e-6 Total Pruned
L0M 7284 522 2663 7374
L1M 128 1717 147 1902
L2M 1509 481 952 2241
L3M 4268 257 1447 4333
L4M 1748 110 783 1777
L5M 16021 7465 7052 16227
L6M 886 63 535 902
L7M 14418 5670 9374 14733
L8M 4033 1282 784 4209
L9M 4095 1151 1036 4445
L10M 12867 2186 10482 15167
L11M 179 419 81 588
Pruning Feature Counts for SAEs trained on GPT-2 Small MLP Output.
Layer Max act < 1 Norm < 0.99 Sparsity < 1e-6 Total Pruned
L0A 21622 4125 11843 22458
L1A 19512 582 10553 20277
L2A 14022 2175 7164 16328
L3A 5793 4419 4705 10579
L4A 7515 2849 8653 12838
L5A 16096 2544 11888 16942
L6A 6023 3452 6707 11469
L7A 14304 3148 10456 17019
L8A 16969 979 11141 17506
L9A 17655 2528 7340 18417
L10A 17141 2845 9307 18435
L11A 15577 2053 12117 17971
Pruning Feature Counts for SAEs trained on GPT-2 Small Attention Output.

Fairly large proportion of features are pruned after training. We can see 91.4% of the features are pruned in Layer 0 Attention Output. An average of 67.9% of the features are pruned in the attention outputs, and 25.1% in the MLP outputs. The larger proportion of pruned features in the attention outputs may tell us that the attention output objectively contains fewer independent features.

Despite the large proportion of pruned features, we didn't observe a significant loss in the reconstruction quality. The variance explained and cross-entropy loss remain largely unchagned in most layers. This indicates that our pruning criteria are effective in removing the trivial features.

Explained variance change after pruning for SAEs trained on GPT-2 Small. Slight rise and fall in variance explained are observed in the MLP and attention outputs.

Finetuning against Feature Suppression

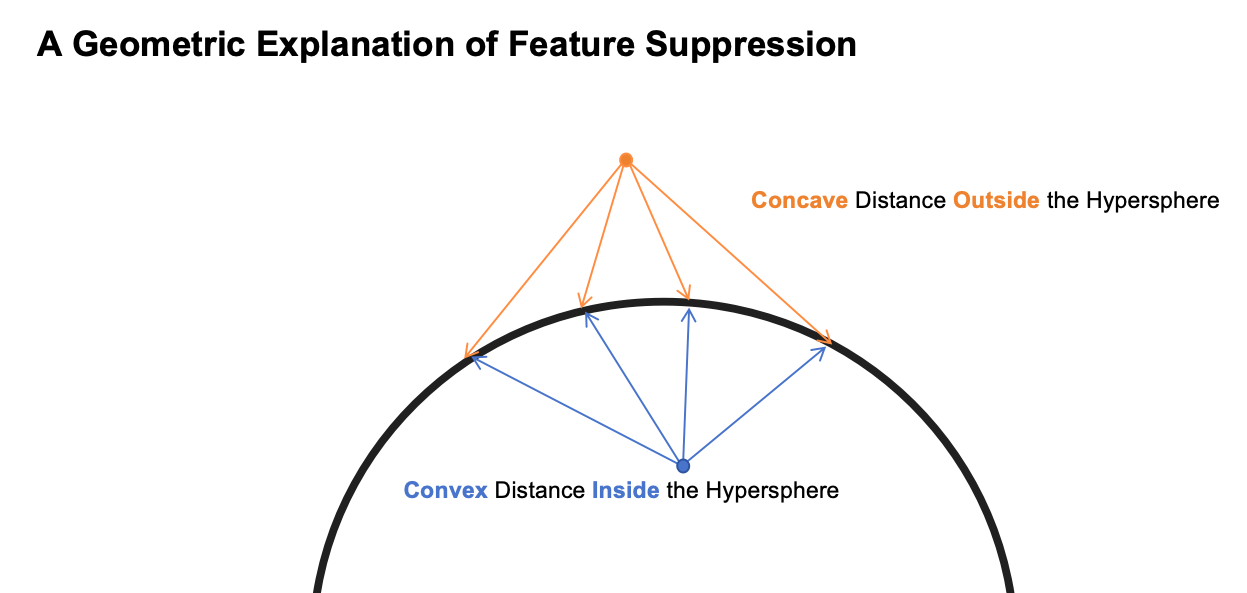

Feature suppression refers to a phenomenon where loss function in SAEs pushes for smaller feature activation values, leading to suppressed features and worse reconstruction quality. Wright and Sharkey deduced that for an L1 coefficient of c and dimension d, instead of having a ground truth feature activation of g, the optimal activation SAEs may learn is g - \frac{cd}{2}.

This is a significant reconstruction quality loss observed in all our trained SAEs. We find that the l2 norm of the reconstructed output have an average of 77.5% of the original l2 norm, which indicates that the feature activations are suppressed by a large margin.

To address this issue, we follow Wright and Sharkey to finetune the decoder and a feature activation scaler of the pruned SAEs on the same dataset. Only the reconstruction loss (i.e. the MSE loss) is applied in this finetuning process. Encoder weights are fixed during this process to keep sparsity of the dictionary. Finetuning may also repair flaws introduced in the pruning process, and improve the overall reconstruction quality.

We achieve an average l2 norm ratio of 89.9% after finetuning. The variance explained and cross-entropy score are increased by 3.2% and 5.1% in average, respectively. Detailed statistics are as follows:

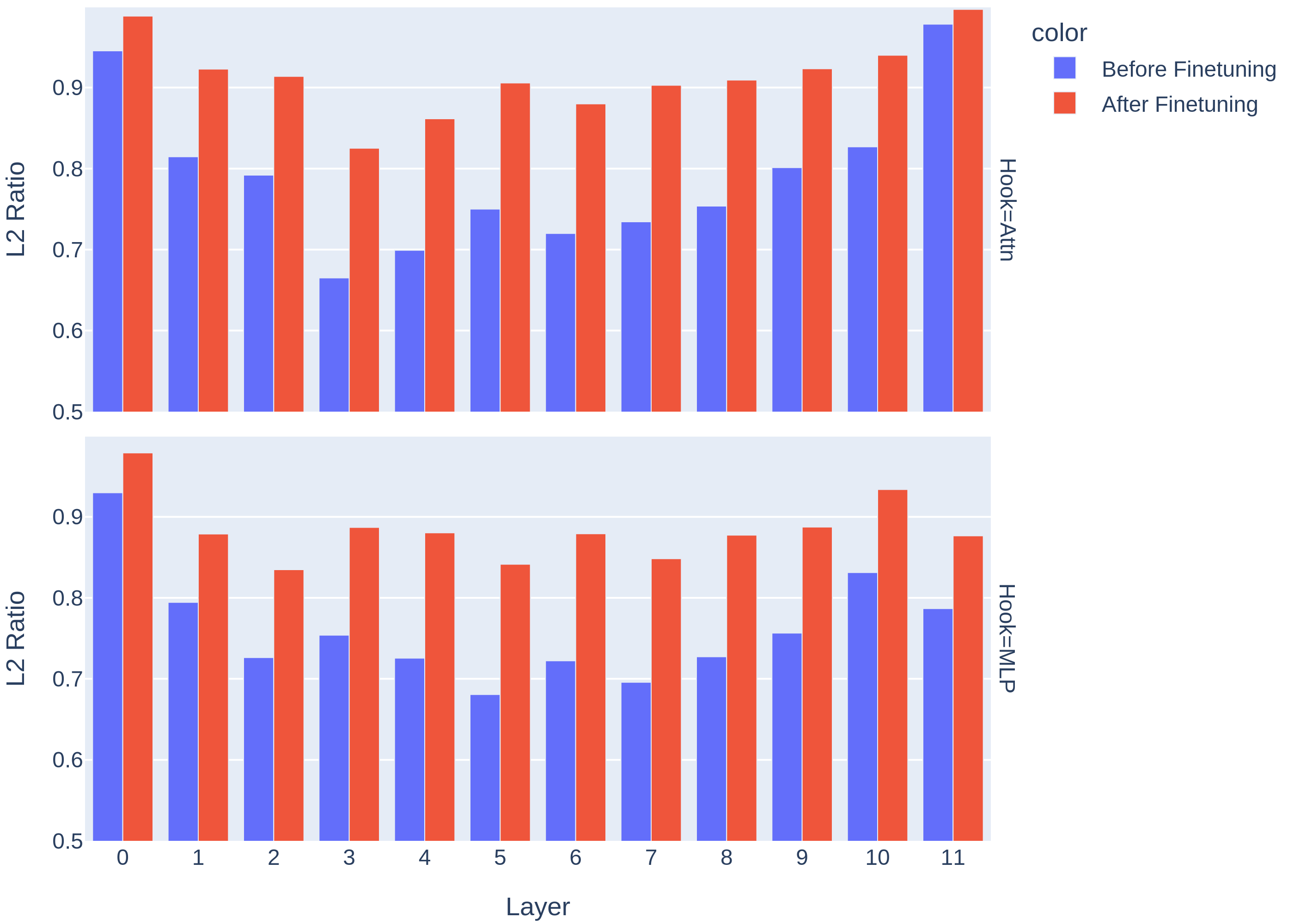

L2 norm ratio change after finetuning for SAEs trained on GPT-2 Small. The l2 norm ratio is the ratio of the l2 norm of the reconstructed output to the original l2 norm. The l2 norm ratio is increased by 12.4% in average after finetuning.

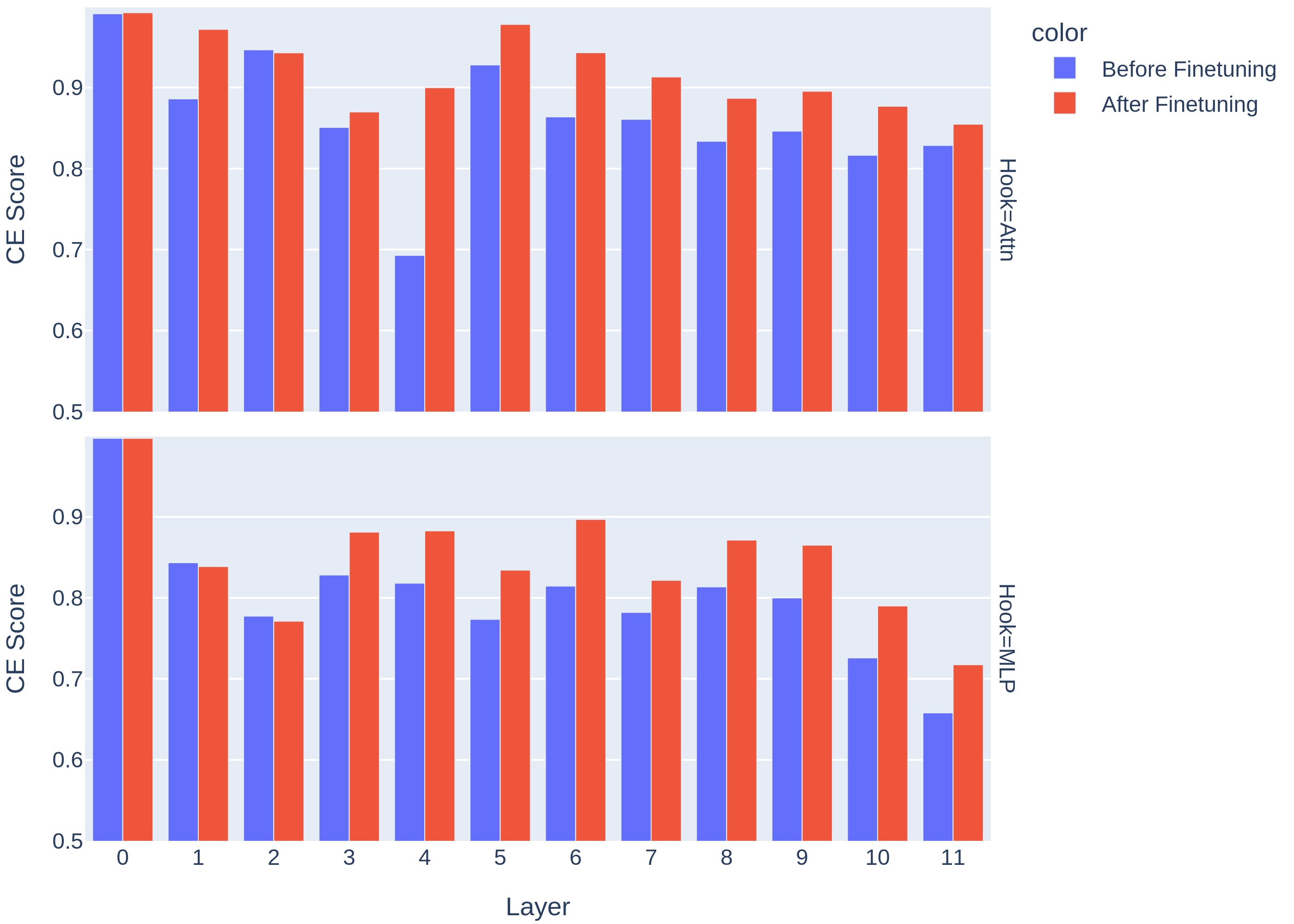

Cross-entropy score change after finetuning for SAEs trained on GPT-2 Small.

Training tricks and dynamics

We want to further discuss some widely-used training tricks and correlating dynamics we observed during the training of SAEs on GPT-2 Small. We conducted a series of extra experiments on L4M, a medium MLP layer which is comparatively hard to train on, to investigate the effects of different training settings.

The first trick we want to study is Ghost Grads, which is a substitute for neuron resampling to make dead features live again. While this method is crucial for rescuing dead features: dead features cannot receive gradients so they cannot recover by themselves, we find that it may also introduce noise to the training process. In fact, it's likely to produce some "half-dead" features which always activate in a ultra low magnitude, just like those we pruned in the feature pruning process. The activation of "half-dead" features are negligible in the overall reconstruction, and low evidence are there to say that they actually represent some meaningful information.

Then it's natural to ask: what if we just let the dead features die, putting no efforts to rescue them? We conducted an experiment on L4M to compare the effects of ghost grads and no ghost grads. We find that the metric of variance explained keep the same in the first 700M tokens, when there's hardly any dead feature on either setting. However, after 700M tokens, the variance explained keep rising on the with-ghost-grads setting (and surprisingly, the rising rate becomes even higher), while it remains stable on the no-ghost-grads side. This indicates that despite the noise introduced by ghost grads, they're seemingly giving the wrong features a "second chance" to rebuild themselves and become useful.

Another question is whether to use a decoder bias. We'll be glad if a SAE without decoder bias can be trained to a good reconstruction quality, since it's simpler and easier for circuit analyses. But after all, does the decoder bias really help? We conducted another experiment on L4M to compare the effects of decoder bias and no decoder bias. It shows that at the beginning of the training, the with-bias setting soon rises to a higher variance explained. But the without-bias setting finally catches up in both L0 and ev after a total of 1.6B tokens.

It's also worthy noting that the convergent trajectory of a setting with ghost grads and without decoder bias is quite distinct and interesting. It seems to have three phases: a fast rising phase, of the first 500M tokens, where the variance explained rises rapidly to 68% and L0 drops to 120; a feature rescuing phase, of 500M to 1B tokens, where ghost grads working and ev continues to rise to 73.7%, in exchange of L0 rising to 285; and finally a sparsity phase, of 1B to 1.6B tokens, where the variance explained keeps stable (with slight decrease to 73.4%) and L0 drops again to 120. We do not train further so we cannot assert this is the final convergence point.

Training dynamics of L4M with different training settings. L4M refers to the same setting as the L4M in the previous experiments, except that learning rate has changed to 4e-4, and the training steps are extended to 1.6B tokens. L4M w/decoder bias and L4M w/o ghost grads refer to the basic setting with decoder bias and without ghost grads respectively.

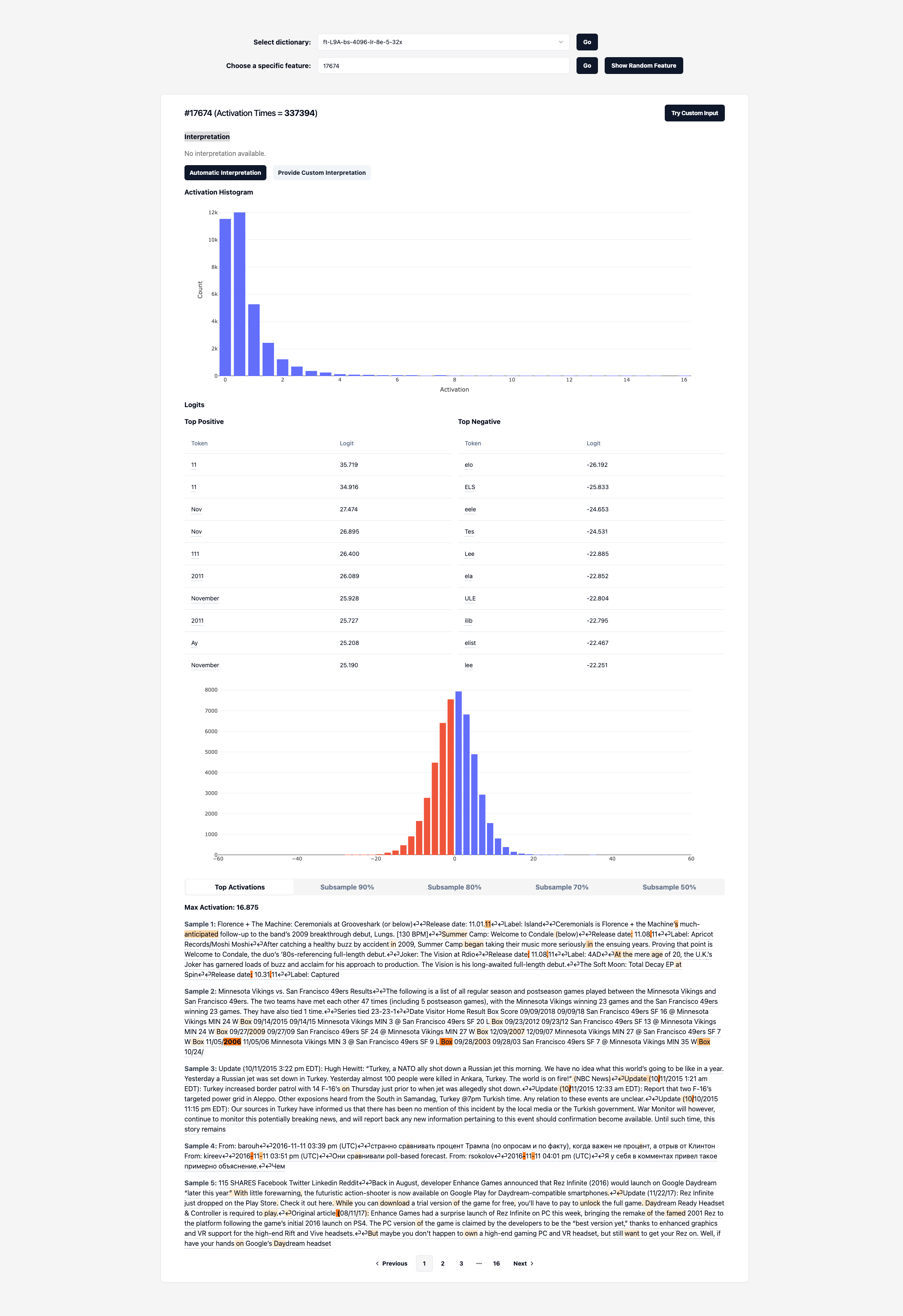

Interface for Interpretability

We are mainly inspired by Anthropic's feature visualizer to design our interface for interpreting each single feature. Our description of one dictionary feature contains:

Our interface is also featuring:

Features We Have Found

We report a curated case study of features we find are common or interesting. For readers who are familiar with mech interp, we believe this could be a good way to gain some kind of intuition about feature families. For example, we have found a number of features firing on start or end of attributive clauses. We also find a number of induction features.

And for readers who have not yet known too much about mech interp, we believe this can be a good way to get a sense of what kind of features are present in Transformer language models i.e. how Transformer learns to represent information in its internal.

We follow the convention in our Othello SAE circuit paper to name the Y-th feature in the X-th Attention / MLP layer as LXAY / LXMY.

Early Layer MLPs Serves as a Supplementary Word Embedding

It is not exciting enough in today to report to have found that neurons in the early, middle, and late layers of a large network tend to play very different types of roles, just as features at different depths of conv net vision models are known to be different. This has been reported in Anthropic's SoLU paper. Nonetheless, this can be a positive sign that SAEs are at least learning something meaningful.

L0M13637 responds to the token 'ates' in names, singular forms of verbs ending with 'ate' and even 'ates' across morphemes like in 'Bureaucratese'.

L0M3903 responds to the word process. One interesting oberservation is that direct logit attribution shows that this feature also directly contributes to the tokens that activate it via the residual stream. This is probably due to the tied embedding and unembedding in GPT2. Another intriguing phenomenon is that the form of 'process' is mostly the same in the top activation samples i.e. ' process'. While other forms of process-related tokens like ' Process|ing' and 'no-|process' only fires this feature for lower than 50% of the max activation magnitude. This at first may seem unsurprising. But under the framework of linear representation hypothesis, this is an example of how Transformer language models decide the activation value of a feature in its corresponding direction: grammatical fundamentality (or a more mundane explanation: frequency).

By L1M, GPT2 begins to learn some n-gram features and group phrases with similar meanings together. For example, L1M20593 responds to phrases like 'aim to', 'goal is to', 'ask for', 'want to' etc.

Extension of "Finite State Automata"

Anthropic's Towards Monosemanticity has reported to find Transformers learned features that interact via the token stream because of patterns in the real datasets. We have found some features related to brackets that we believe are not present in the one-layer Transformer in Towards Monosemanticity and can be deemed as an extension to the "Finite State Automata" phenomenology in real models.

L1A11421 fires on tokens inside of brackets. This feature exhibits behavior of a stack. When the number of left brackets is more than the number of right brackets, the feature will activated after the right bracket(s). And as we increase the number of right brackets, the firing range of this feature is reduced.

We believe the key components of bracket-related circuit also contain a number of features responding to left or right brackets. For instance, L0M18327 fires at left brackets and L0A15911 at right brackets. We plan to dig in more on this circuit with the analysis framework we introduced in our Othello SAE circuit paper and will report more findings in the future.

Sentence (Clause) Level Features 'Emerge' at L3M

L3M19583 seems to respond to periods at the end of IT-related sentences. Despite our efforts on manual search, we failed to find any feature before L3M firing on sentence level.

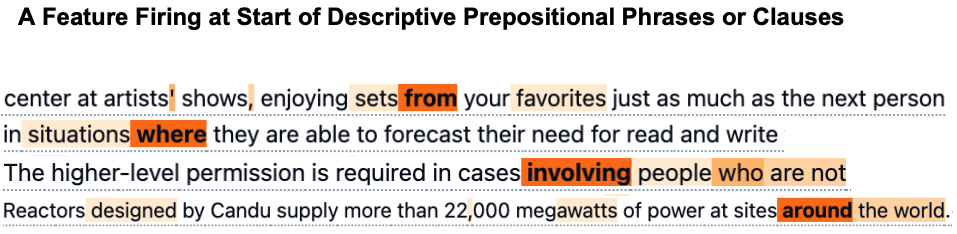

After L3M, we start to find a number of features firing on start or end of clauses. L4A21554 and L4A7838 respond to the conjunctions indicating the start of attributive clauses or descriptive prepositional phrases. See also this X post for an end-of-clauses example.

Induction Features

Induction Heads are believed to be an important component for Transformer language models to reduce loss and perform in-context learning. We have found a number of features that seem to implement the two parts of induction heads: previous-token features and induction features.

L3A12618 and L3A220 serve as previous-token features for 'U' and locations, respectively.

Correspondingly, there are some features in higher-layer attentions to perform induction. For example, L5A20004 performs induction to enhance the logits of upper-case letters.

L5A20004 fires on the second and the rest 'Open's and copies from the first 'M' to predict the second and the rest 'M's.

There are many more features in L5A we believe to perform induction. Previous study on attention SAEs by robertzk et al. has identified L5A Head 1 as an induction head. Therefore, we believe L5A is an important place for GPT-2 to do induction. Additionally, a rough oberservation about these features is that they are one of the earliest features to directly contribute to the logits in an interpretable way.

Circuit discovery with dictionary features, as introduced in our Othello SAE paper, is promising to analyze local circuits in that we can figure out how a lower-level feature is transformed into a higher-level one. Furthurmore, we can also make clear which heads constitute the circuit. We plan to release a more detailed report on induction features and the circuits they form in the future.

Features Detecting More Abstract Concepts

The mission of mech interp research involves discovering beautiful structures in neural networks and identifying probable dangerous abilities that may affect human society. Most of features we introduce in this post are ones we find interesting for GPT2 to represent. We have also found a number of crime-related features L4A23556, L7A20944 and L10M12892 , which may be of use in larger scale mech interp research for safety.

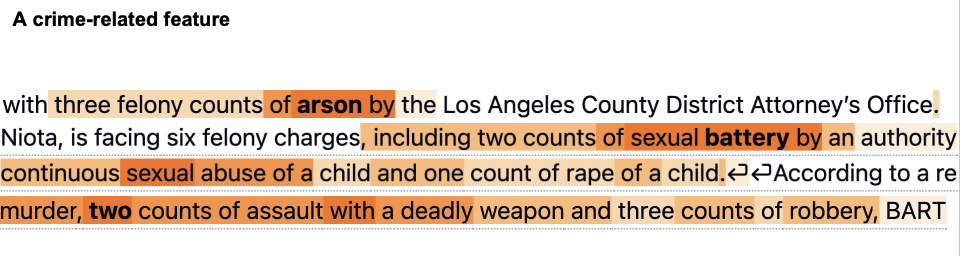

L4A23556 identifies descriptions of criminal charges or illegal activities.

Another feature we find intriguing is the Future Feature L6A6184. The feature is identifying the usage of future tense in the text like 'will', 'next', 'project to' etc. As we investigate more about this feature, we find that it also fires on upcoming events like the 2022 World Cup.From GPT2's perpective, it is indeed a future event. Then we find this interesting activation pattern:

L6A6184 seems to know when it is trained and fires at years after 2018.

Calibrating Me, Myself and I

As the model goes into its deeper layers, SAE features exhibit more interpretability in their direct contribution to the final logits instead of responding to inputsThese two perspectives are not exclusive, though.. However, we find a feature at the last MLP L11M14603 which is suppressing the logits of tokens such as 'me', 'myself', 'I', 'us' in the contexts where the next token is very likely to be these tokens.

We currently do not know what is going on in this seemingly calibrating feature. We seek to find out more about this in our ongoing circuit analysis.

Our 1-year Agenda

In near future, our center project encompasses two topics: Science of Dictionary Learning and Circuit Discovery with SAE Features. We are also interested in multiple side-branches such as Discovering Mamba Motif & Universality, SAEs for Training Dynamics and Expertise of Experts. By saying that the former two directions are centric and the latter three are in side-branches, we do not mean any project is priviledged over any one another. The center project treats SAEs as the object to be studied and the other two use SAEs as tools to offer more findings in mainstream language models. The aforementioned projects are all ongoing and will be published at OpenMOSS.

Science of Dictionary Learning (0-12 months)

Fukang Zhu, Xuyang Ge, Zhengfu He

Dictionary Learning is in fact not a new approach. However existing literature does not satisfy to perfectly help with attacking superposition and extracting monosemantic features with negligible loss or high sparsity. Moreover, one lesson from Anthropic's tanh experiment is that even if some methods help improve these existing metrics, it may deteriorate interpretability, which lack a reliable metric to test on.

Despite these possible obstacles and pitfalls, we are still carefully optimistic about SAEs. In the upcoming year, our plans on improving SAEs include but are not limited to:

Circuit Discovery with SAE Features (0-12 months)

Xuyang Ge, Zhengfu He

Our latest Othello SAE circuit paper mainly depicts our vision for circuit discovery in Transformers. We believe Predicting Future Activations may serve as a substitute for our imperfect Approximate Direct Contribution to decompile MLP blocks. Our pilot study has shown that training SAEs which take in pre-MLP residual stream activations and predict MLP outputs is feasible and can produce interpretable features.

Our plan on circuit analysis starts from simple local circuits like the in-bracket feature and go on with more global circuits like induction heads and Indirect Object Identification. If we manage to validate our circuit discovery pipeline on these widely-studied tasks, we would like to focus more on behaviors with unclear mechanism e.g. logit calibration and undesired behaviors i.e. Transformer Pathology.

Our methodology mainly utilizes direct contribution and conduct evaluations with respect to ablation. We currently believe this approach gets rid of out-of-distribution problems and consequent self-repair behaviors of language models.

Discovering Mamba Motif & Universality (0-3 months)

Junxuan Wang, Xuyang Ge, Zhengfu He

Among the family of language models with State Space Models, Mamba has received most attention. We plan to conduct a systematic study of Mamba SAEs to figure out the following questions:

SAEs for Training Dynamics(0-3 months)

Zhengfu He

We are also interested in understanding the training trajectory of language models with SAEs. By investigating features in the progress of model training, we expect to observe the following types of signal of structure:

Expertise of Experts (3-6 months)

Wentao Shu, Zhiyuan Zeng, Zhengfu He

A recent X post has posed a challenge to utilize SAEs to find some kind of Branch (Expert) Specialization in MoE models. We had come up with similar ideas to introduce this new and powerful tools into understanding the expertise inside of expert models. Though we do not assume a priori that all or most features are specialized to one expert, we believe there exist some rationale behind Mixture-of-Experts models to internally assign experts and organize the activation space.
